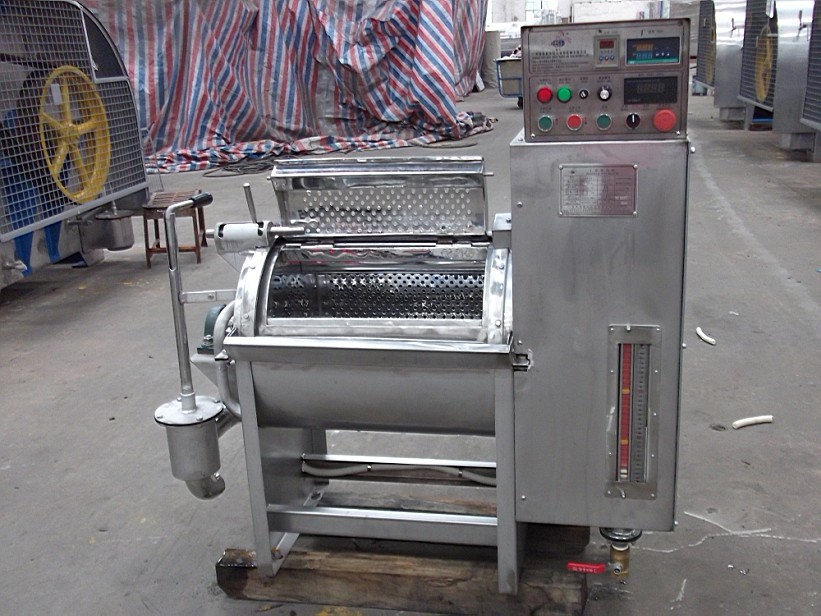

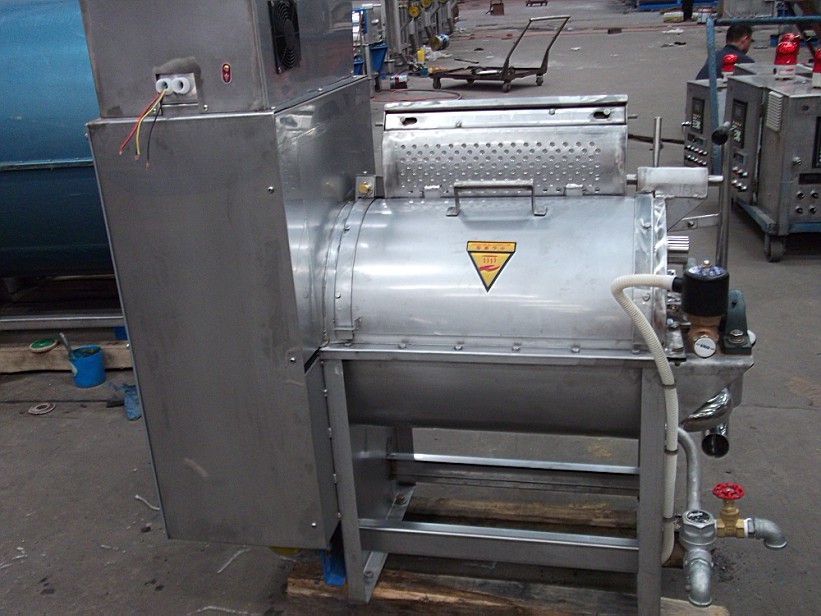

CX Industrail washing and dyeing machines
*Suitable for drying garments mdae of various fabrics such as cotton,jeans,woven fabric,knitted fabric,synthetic textile,etc.
*Inner drum and outer drum are made of #304 Stainless Steel, Professional Punching Process, surface is smooth and durable
*Installed with the invertor, rotating drum in normal and reverse directions.
*Installed with Digital Program Control System for accurate time & temperature control.
*Two Heating Resources for optional : Steam and Electric.
*With Direct and Indirect Heating Systems, Heating rapidly, small temperature difference
*With Safety Protection in every Critical position, Convenient to install and operate.
| Model | CX-11 | CX-20 | CX-30 | CX-55 | CX-100 | CX-120 |
| Capacity | 5 | 9 | 14 | 25 | 45 | 54 |
| Cylinder Size | φ400×480 | φ550×600 | φ600×680 | φ640×760 | φ800×960 | φ900×1050 |
| Cylinder Thickness | 2 | 2 | 2 | 2 | 2 | 2 |
| Power | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Water-consuming | 85 | 95 | 110 | 160 | 260 | 320 |
| Steam-consuming | 11 | 13 | 15 | 18 | 36 | 44 |
| Electric-consuming | 0.75 | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Diamension | 1160*680*1060 | 1340*950*1140 | 1400*960*1160 | 1480*980*1180 | 1750*1050*1310 | 1920*1160*1380 |
| Net Weight | 160 | 240 | 250 | 360 | 540 | 660 |
| Model | CX-150 | CX-200 | CX-450 | CX-550 | CX-600 | CX-800 |
| Capacity | 68 | 90 | 200 | 250 | 270 | 360 |
| Cylinder Size | φ1000×1000 | φ1000×1200 | φ1100×2260 | φ1220×2260 | φ1220×2400 | φ1500×2400 |
| Cylinder Thickness | 2 | 2 | 3 | 4 | 4 | 4 |
| Power | 2.2 | 2.2 | 5.5 | 7.5 | 7.5 | 11 |
| Water-consuming | 370 | 480 | 950 | 1200 | 1300 | 1700 |
| Steam-consuming | 55 | 73 | 164 | 182 | 218 | 290 |
| Electric-consuming | 1.5 | 2.2 | 5.5 | 7.5 | 7.5 | 11 |
| Diamension | 1750*1450*1720 | 2050*1380*1730 | 3230*1550*1900 | 3230*1680*2080 | 3400*1680*2150 | 4100*20000*2100 |
| Net Weight | 740 | 860 | 1550 | 1950 | 2060 | 2600 |
