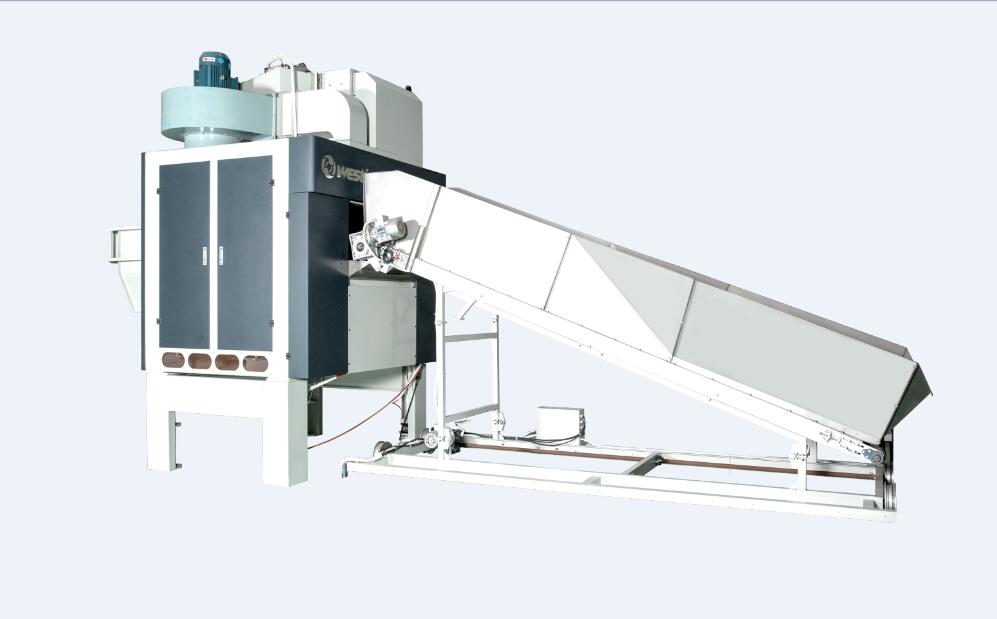

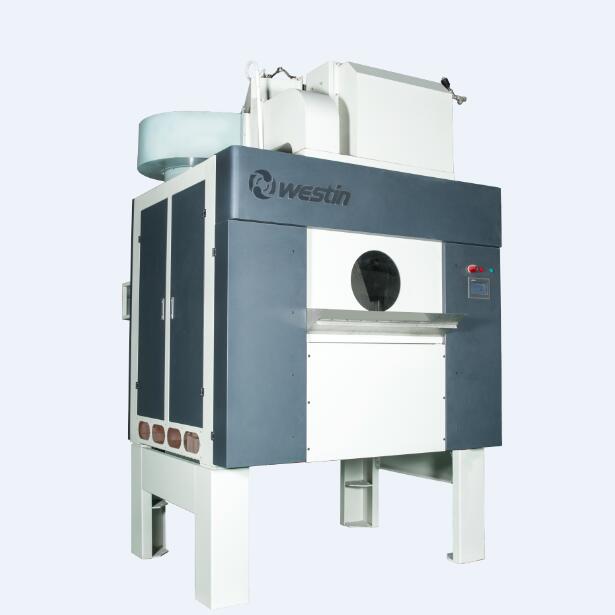

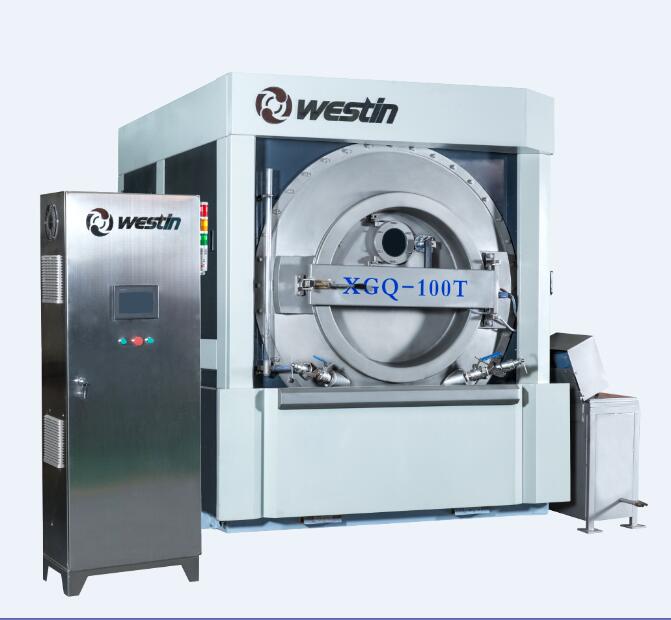

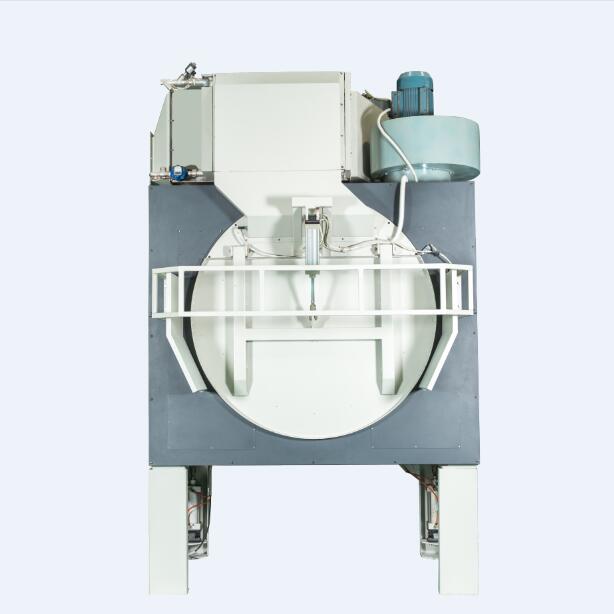

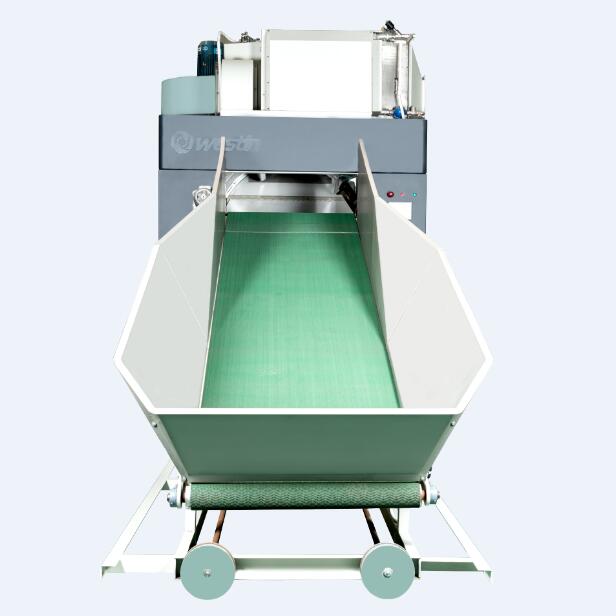

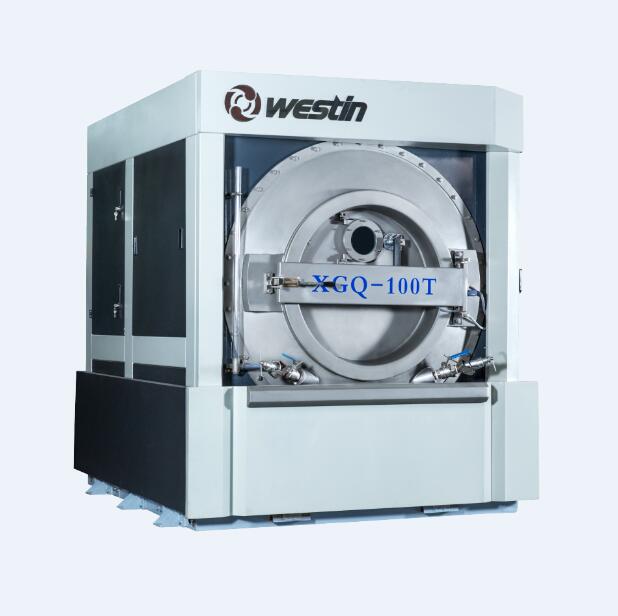

XGQ-100T(100kg) Tilting Washing Machine

1)Inner drum size:φ1320mm×860mm, use 4mm stainless steel plate(304#) punching.

2)Dimension:L2300mm×W1900mm×H2200mm

3)Outside crust size: use 2.5mm 304# stainless steel drawbench;

4) Washing speed:42r/min; Motor power: 5.5KW;

5)Machine weight: 2500kg;

6) Electrical parts: Inverter、computer control design functions.

Characteristic:Forward 16 degrees, 24 second finish discharging, save much labor.

XGQ-150T(150kg) Tilting Washing Machine

1)Inner drum size:φ1320mm×1120mm, use 4mm stainless steel plate(304#) punching.

2)Dimension:L2500mm×W1900mm×H2200mm

3)Outside crust size: use 2.5mm 304# stainless steel drawbench;

4) Washing speed:42r/min; Motor power: 7.5KW;

5)Machine weight: 3000kg;

6) Electrical parts: Inverter、computer control design functions.

Characteristic:Forward 16 degrees, 24 second finish discharging, save much labor.

XGQ-200T(200kg) Tilting Washing Machine

1)Inner drum size:φ1600mm×1000mm, use 5mm stainless steel plate(304#) punching.

2)Dimension:L2200mm×W2000mm×H2200mm

3)Outside crust size: use 1.2mm 304# stainless steel drawbench;

4) Washing speed:42r/min; Motor power: 11KW;

5)Machine weight: 3200kg;

6) Electrical parts: Inverter、computer control design functions.

XGQ-250T(250kg) Tilting Washing Machine

1)Inner drum size:φ1600mm×1250mm, use 5mm stainless steel plate(304#) punching.

2)Dimension:L2400mm×W2000mm×H2200mm

3)Outside crust size: use 1.2mm 304# stainless steel drawbench;

4) Washing speed:42r/min; Motor power: 11KW;

5)Machine weight: 3500kg;

6) Electrical parts: Inverter、computer control design functions.

Characteristic:Forward 16 degrees, 24 second finish discharging, save much labor.

Characteristic:

1.Special design for front plate door, easy for discharging, manual open the door.

2.Backward 16 degrees, easy loading.

3.Forward 16 degrees, 24 second finish discharging.

4.The tilting function save much labor, and reduce discharging time to raising the

efficiency.

5.We will use safety plate to package it’s left. right. front. side plate before

delivery. And  field installation.
